Product Details:
Payment & Shipping Terms:
|
| Type: | PU Sheet | Applications: | Plastic Processing Machine |
|---|---|---|---|
| Density: | 1.12 - 1.25g/cm³ | Feature: | Light Weight |
| Material: | Polyether|Polyester|PTMG | Product Name: | Industrial Engineering Plastics |
| High Light: | Engineering Plastic Products,Industrial Engineering Plastics |
||

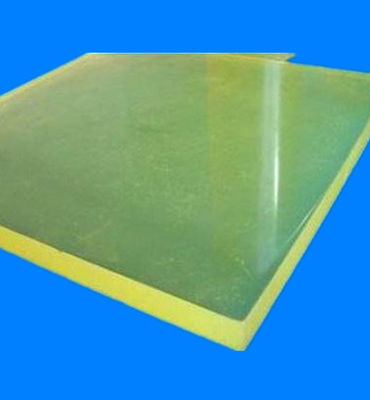

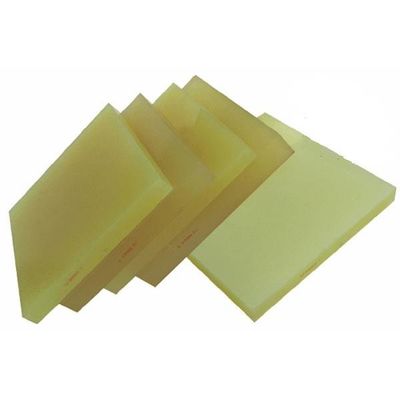

Light Weight PU Sheets Engineering For Plastic Processing Machine
Quick Detail:
1. Light weight, Fast installation and easy handling
2. Crane assembly therefore no scaffolding required
3. No thermal bridges and good thermal insulation properties
4. Design flexibility with choice of colour finishes
5. Panels can be installed horizontally or vertically
6. Reliable robust mechanical performance
7. Outstanding non combustible, inflaming retarding and acoustic performance
8. Insulation and environmental protection
9. Length can be decided as buyer's requirements
Description:
PU sheet/Polyurethane Sheet is a unique materialand has excellent wear resistance, tear resistance and
elasticity, can be produced to products of different thickness and length and width, The sheet is mainly
used for buffering, compression, bearing, etc., esp. Used in the molding equipment, sandblasting room,
iron and steel factory, ceramics factory, electronic, food, construction and other needs of flexibility and
abrasion resistance. PU plate and sheet can also be reprocessed into a variety of seals, buffer
components, and other non-standard items.
Applications:
PU Sheet can widely use in
1.paper making machines, chemical fire equipment, wood processing machine and plastic processing
machine.
2.Various printing rollers, roller for peeling and spring in leather factory
3.Various PU roller: elevator wheels, forklift rollers, wheel for sliding board
Walking wheels in sewage treatment factory
Specifications:
|
PU Sheet |
||
|
Length(mm) |
width(mm) |
thickness(mm) |
|
300 |
300 |
From 1,2,3mm.......To 500mm |
|
500 |
500 |
|
|
600 |
600 |
|
|
1000 |
1000 |
|
|
1000 |
1200 |
|
|
2000 |
1000 |
|
|
2000 |
1200 |
|
|
4000 |
3000 |
Above 20mm |
|
4000 |
1000 |
From 1mm To18mm |
|
4000 |
1200 |
|
|
Material: |
Polyether |
Polyester |
PTMG |
|
|
Hardness: |
40-98 |
Shore A |
||
|
Density: |
1.12-1.25 |
G/CM3 |
||
|
Tensile Strength: |
17-49 |
Mpa |
||
|
100% Tensile |
>3.1—6.4 |
Mpa |
||
|
300% Tensile |
>6.9—12.1 |
Mpa |
||
|
Elongation: |
>450-610 |
% |
||
|
Elasticity Impact: |
>20-30 |
% |
||
|
Tear strength: |
>50-155 |
KN/M |
||
|
Akron Abrasion Loss: |
<0.05/1.61 |
CM3/ KM |
||
|
Compression set (22h*70°C): |
<10,<5,<3 |
% |
||
Remarks:
PU sheet/Polyurethane Sheet are available in other sizes and thickness according to customer's specific
requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
