Fiberglass Braided Gland Packing For Pumps Industrial Gland packing Good Sealing Properties

China Fiberglass Braided Gland Packing For Pumps Industrial Gland packing Good Sealing Properties supplier
Fiberglass Braided Gland Packing For Pumps Industrial Gland packing Good Sealing Properties supplier Fiberglass Braided Gland Packing For Pumps Industrial Gland packing Good Sealing Properties supplier

Large Image :  Fiberglass Braided Gland Packing For Pumps Industrial Gland packing Good Sealing Properties

Product Details:

Place of Origin: China
Brand Name: B&C
Certification: SGS,UL, CE,IOS9001,ISO14001
Model Number: Fiberglass braided packing-001
Size: 3 x 3 - 100 x 100mm

Payment & Shipping Terms:

Minimum Order Quantity: 30KGS
Price: Negotiable
Packaging Details: Ply-Wooden Cases
Delivery Time: 10-20days
Payment Terms: T/T, LC
Supply Ability: 110Tons/month
Detailed Product Description
High Light:

ptfe gland packing

,

gland packing seal

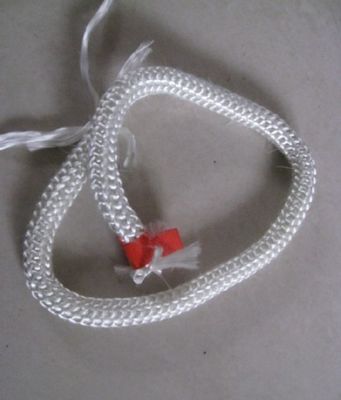

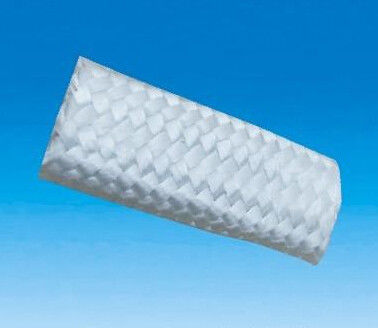

Fiberglass Braided Gland Packing For Pumps Industrial Gland packing Good Sealing Properties





Material:

Fiberglass Braided Packing is diagonally braided from textured glass-fiber yarn, impregnated through out with PTFE emulsion, silicone-free break in lubricant. It is very dense and supple packing, good chemical resistance.



Application areas:

Fiberglass Braided Packing is used in Rotary and reciprocating pumps, valves, mixers and agitators,pulp & paper,peroleum,chemical and food industry, sugar mills and water treatment plants.



Application media:

 Fiberglass Braided Packingis suitable for water, steam, solvents, oils, most chemicals, mild acids and lyes, etc.



Not suitable for:

Concentrated acids and lyes, oxygen.



Application Data:

  Rotary Reciprocating Valve
Pressure:bar 15 100 150
Speed:m/s 8 2 1.5
pH Range 3 - 12
Temp. °C -40 to +280



Stock Dimension: (Max. size: 4” square)

mm sq.   4 5 6 7 8 10 11 12 13 14 15 16 18 19 20 22 24 25
M/kg.abt.   46 30 21 16 12.0 7.7 6.45 5.4 4.6 3.98 3.5 3.10 2.44 2.19 2.01 1.66 1.40 1.29
Inch sq   5/32 3/16 1/4   5/16 3/8 7/16 1/2   9/16   5/8 11/16 3/4 13/16 7/8 15/16 1
Ft/Lb.abt   68.6 48 27   17.8 12.6 9.43 7.2   5.68   4.67 3.85 3.27 2.82 2.43 2.11 1.86
Packaging 5kgs per coil 5kgs per coil 5kgs per coil

Note: 1/8", 3/16"(Less than 7mm)are square braided construction.

(other Packaging on your request)
