Product Details:
Payment & Shipping Terms:
|
| Type: | PTFE O-Rings | Applications: | Pipe Fittings |
|---|---|---|---|
| Color: | White | Feature: | Anti-Corrosion|Non-Stick|High Chemical Stability |
| Product Name: | PTFE Balls | Temp: | -180 °C - 260 °C |
| Density: | 2.10 - 2.30 G/cm³ | ||
| High Light: | teflon ptfe tubing,ptfe heat shrink tubing |
||
Non-Stick PTFE Balls , 2.30 g/cm³ PTFE O-Rings For Pipe Fittings Non-Stick
Quick Detail:
1.special high chemical stability
2.low co-efficient of friction
3.nonstick
4.High quality and competitive price
Description:
PTFE O-Ring is chosen suspended aggregation PTFE/ resin shaped or cutting into
processed. compared with other plastics with a corrosion resistant chemical characteristics
Naiwen Merit.It has been widely used as a sealed materials.

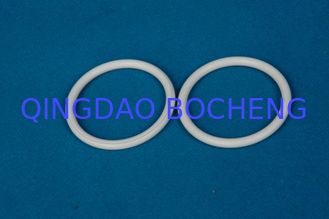

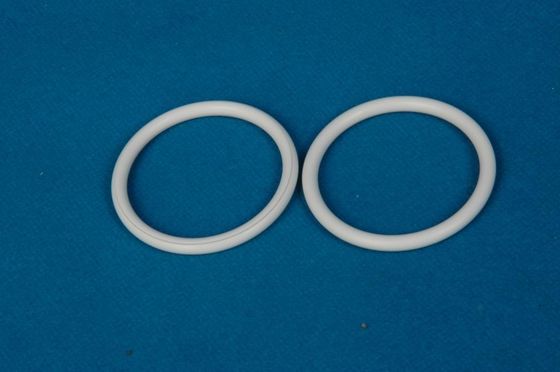

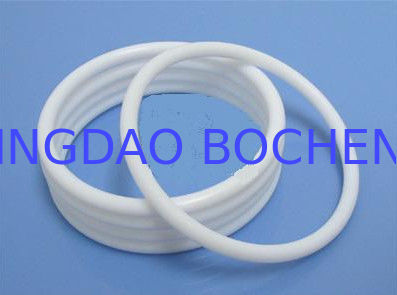

PTFE O-Rings are produced following the standard dash sizes as for rubber sizes. They are circular
rings with an ID and a cord diameter, which gives various advantages on the rubber O-Rings.
Applications:
1.Machinable production liner,
2.complex piece,
3.three-, four-way,
4.Elbow
5.pipe fittings,
6.wide turning plate,
7.chemical container equipment
Specifications:
|
Specification: |
||
|
Item |
Unit |
Range of work |
|
Inter Ф |
mm |
1~2000mm |
|
Outer Ф |
mm |
2~2000mm |
|
Thickness |
mm |
0.3~50mm |
|
Filled Materials |
Graphite ,Glass Fiber , Carbron fiber , Bronze |
|
|
Technical Data: |
||
|
PROPERTIES |
UNIT |
RESULT |
|
Apparent density |
g/cm3 |
2.10-2.30 |
|
Tensile strength (min) |
Mpa |
≥25 |
|
Ultimate elongation (min) |
% |
≥200 |
|
Working Temp |
°C |
-180 ~ 260 |
|
Melting point |
°C |
327 |
|
Produce Max. Temp |
°C |
385 |
|
Hardness Rockwell |
|
M65 |
Remarks:
PTFE O-Rings is available in variety of colors, diameter, thickness to meet your specific requirements.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
