Product Details:
Payment & Shipping Terms:
|
| Type: | PFA Resin | Appearance: | Translucent Particles |
|---|---|---|---|
| Applications: | Heat Exchanger | Feature: | Anti-Corrosion |
| Product Name: | Fluoropolymer Resin | Tensile Strength: | 28Mpa, 27Mpa, 29Mpa |
| High Light: | ETFE Resin,FEP Resin |
||

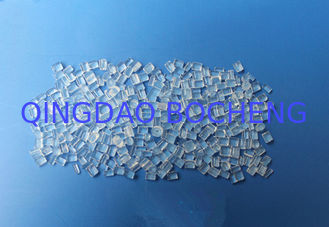

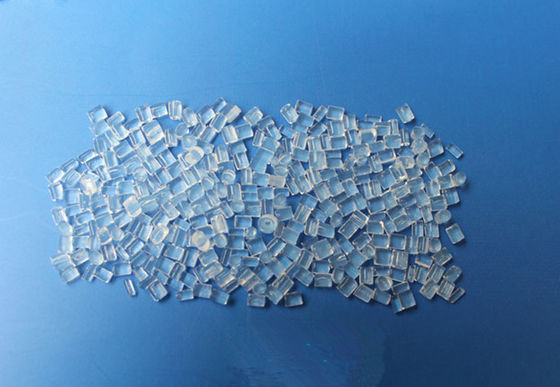

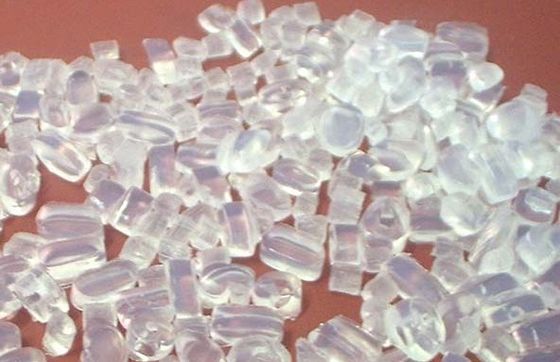

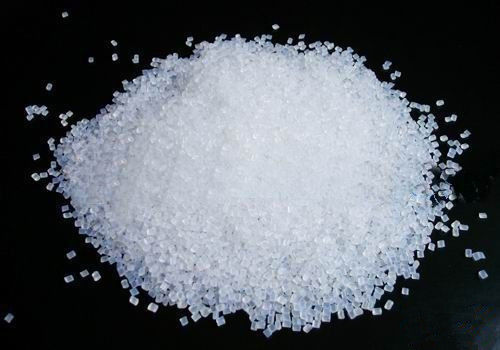

Anti-Corrosion Fluoropolymer Resin / 29Mpa PFA Resin For Heat Exchanger
Quick Detail:
A. aging resistance
B. radiation resistance
C. low permeability
D. high pressure resistance
E. oil resistance
F. anti-corrosion
G.Flame retardation.
Description:
PFA resin its chemical stability properties, physical and mechanical performance,
electrical insulating properties, lubricity, not sticky, aging and incombustible are very fine, all and assembled
tetrachloroethylene similar. Also has the same tetrachloroethylene and assembled the thermal stability,
PFA resin is suitable for electrical and electronic industry insulating layer, high frequency and uhf wire
insulation, electronic devices, insulation parts cable insulation and sheath, connector plug,bearing
insulation, printed circuit boards, electrostatic megaphone to use membrane, etc. Especially the small
size thin-wall insulation line, its processing speed is more then general PTFE twined materials many times
Applications:
PFA resins can widely used in:
1. Heat exchanger,
2. Steam pipe,
3. High purity reagent pipeline,
4. All kinds of corrosive medium (harsh solvents) pipe,
5. Wiring insulation jacket.
6. Detailed fluorine rubber ring plastic pipe.
7. Ultra high frequency electrical wiring insulation,
8. Electronic devices,
9. The connector plug,
Technical Parameter:
|
Physical performance |
Proportion(g/CM3) |
2.12-2.17 |
|
Melting Point(°C) |
302-312 |
|
|
Melt Index(g/10min) |
15-17 |
|
|
Mechanical properties |
Tensile Strength (MPa) |
27-29 |
|
Elongation at break(%) |
300 |
|
|
hardness |
60 |
|
|
coefficient of dynamic friction |
0.04 |
|
|
Thermal properties |
Continuous highest use temperature(°C) |
82~260 |
|
HDT (°C) (18.5kg/cm2) |
12 |
|
|
coefficient of linear expansion*105(K-1) |
15 |
|
|
Electric performance |
Volume resistance(Ω·CM) |
1018 |
|
Insulation destruction voltage (0.2mm)(MV/m) |
20 |
|
|
Permitting(1KHz) |
2.1 |
|
|
Dielectric Loss Tangent(tanδ)(X106Hz) |
≤0.03 |
Remarks:
You may interested in our other products just like PVDF resin,FEP resin and PTFE resin, etc.
Competitive Advantage:
1.Excellent Chemical property
2.Virgin and recycled materials available
3.Any sizes available
4.Fast Usually
|
Item |
Unit |
BC001 |
BC002 |
BC003 |
BC004 |
|||
|
A |
B |
C |
||||||
|
Appearance |
|
Translucent particles |
||||||
|
|
||||||||
|
MFR |
g/10min |
0.8-2 |
2.1-6 |
6.1-12 |
12.1-16 |
16.1-24 |
24.1-30 |
|
|
Density ratio |
g/cm3 |
2.10-2.16 |
2.10-2.16 |
2.10-2.16 |
2.10-2.16 |
2.10-2.16 |
2.10-2.16 |
|
|
Melting temperature |
℃ |
300-310 |
300-310 |
300-310 |
300-310 |
300-310 |
300-310 |
|
|
Operating temperature |
℃ |
260 |
260 |
260 |
260 |
260 |
260 |
|
|
Tensile strength |
Mpa |
33-36 |
30-35 |
28-32 |
28-32 |
28-32 |
28-32 |
|
|
(23℃),≥ |
||||||||
|
Elogation at break |
% |
300 |
300 |
300 |
300 |
300 |
300 |
|
|
(23℃) |
||||||||
|
Water absorption,＜ |
％ |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
|
Product usage:
BC001: Mainly used for piping, pump, valve, tank lining, diaphragm, joint part, bearing, etc；
BC002: Mainly used for pipe, wire insulation layer, thin films, and various parts;
BC003: Used for general-purpose plastics extrusion processing, mainly used for cable insulation wire,
multiconductor cable sheath, etc.;
BC004:Mainly used in aviation, aerospace industry, chemical industry,used for faster cabel extrusion,
and it is more economical for most purposes without stress cracking resistance.
